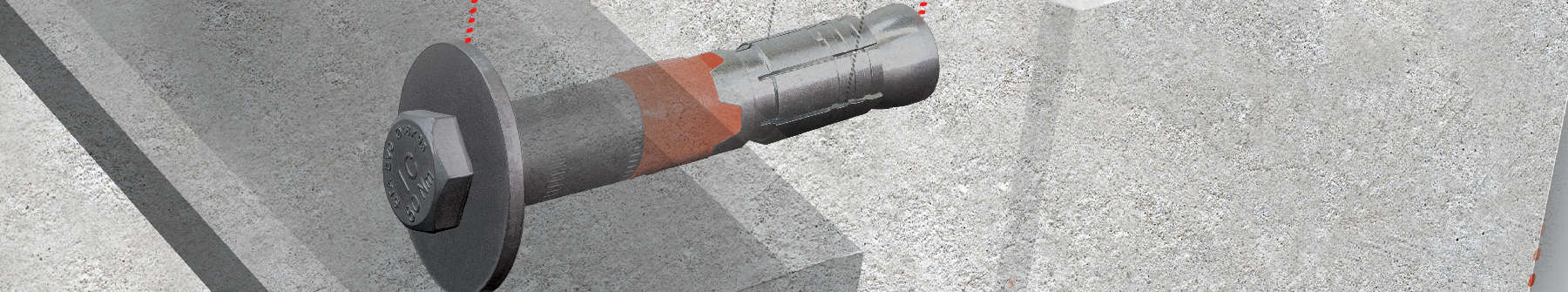

STA-EVO M12 Thin Concrete Panel Anchors

Developed specifically for requirements in Western Australia, ICCONS® STA-EVO M12 Thin Panel Anchor is the ultimate choice when seeking an ultimate performance anchor with shallow embedment characteristics.

Traditionally, fasteners with an ETA and a diameter of M12 and larger were limited to concrete base materials = 150mm. This posed challenges in designing for fasteners used in thin precast concrete panels, necessitating performance solutions beyond the scope of AS5216:2021 and the DTS (Deem-To-Satisfy) requirements of the NCC (National Construction Code).

Through extensive research & development ICCONS® has successfully addressed this limitation, resulting in the release of the STA-EVO M12 Thin Panel Anchor.


  • Designed & engineered for thin concrete panels
  • 90mm Long = Shallow embedment
  • Head markings for post installation identification
  • National Code Compliant
  • European technical Assessment
  • Fire Rated
  • Available on DesignPRO

Download  DesignPRO (fast and free) to design with ICCONS® STA-EVO and other compliant anchoring solutions in accordance with the latest Australian Fastening Standard AS 5216:2021.


Features:

  • Designed for use in thin precast concrete panels (125mm min.)
  • Available in zinc plated and corrosion resistant zinc nickel
  • Comprises of class 8.8 high tensile bolt
  • Head and sleeve markings for traceability
  • High strength large diameter washer (O.D. 44mm)

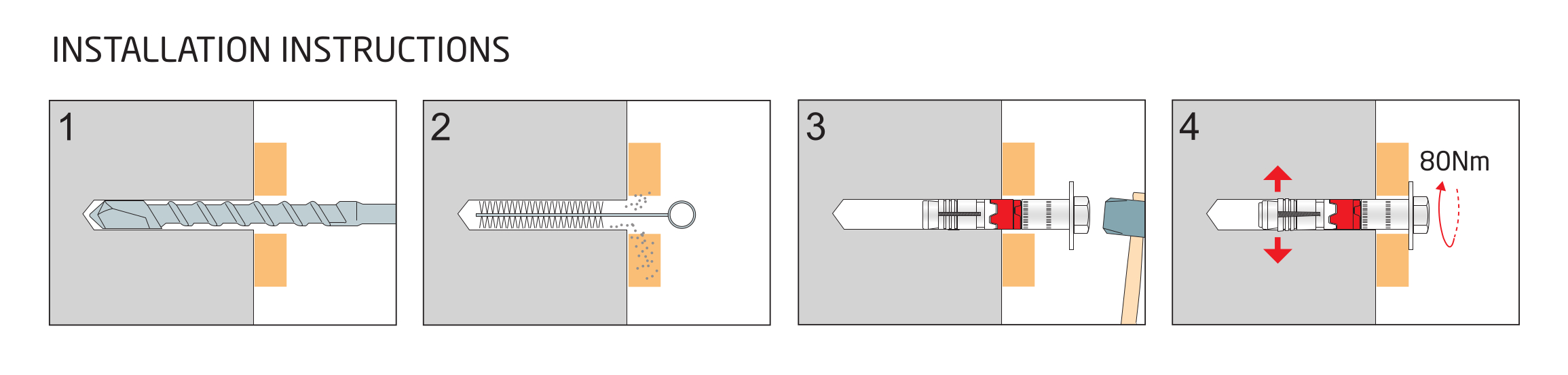

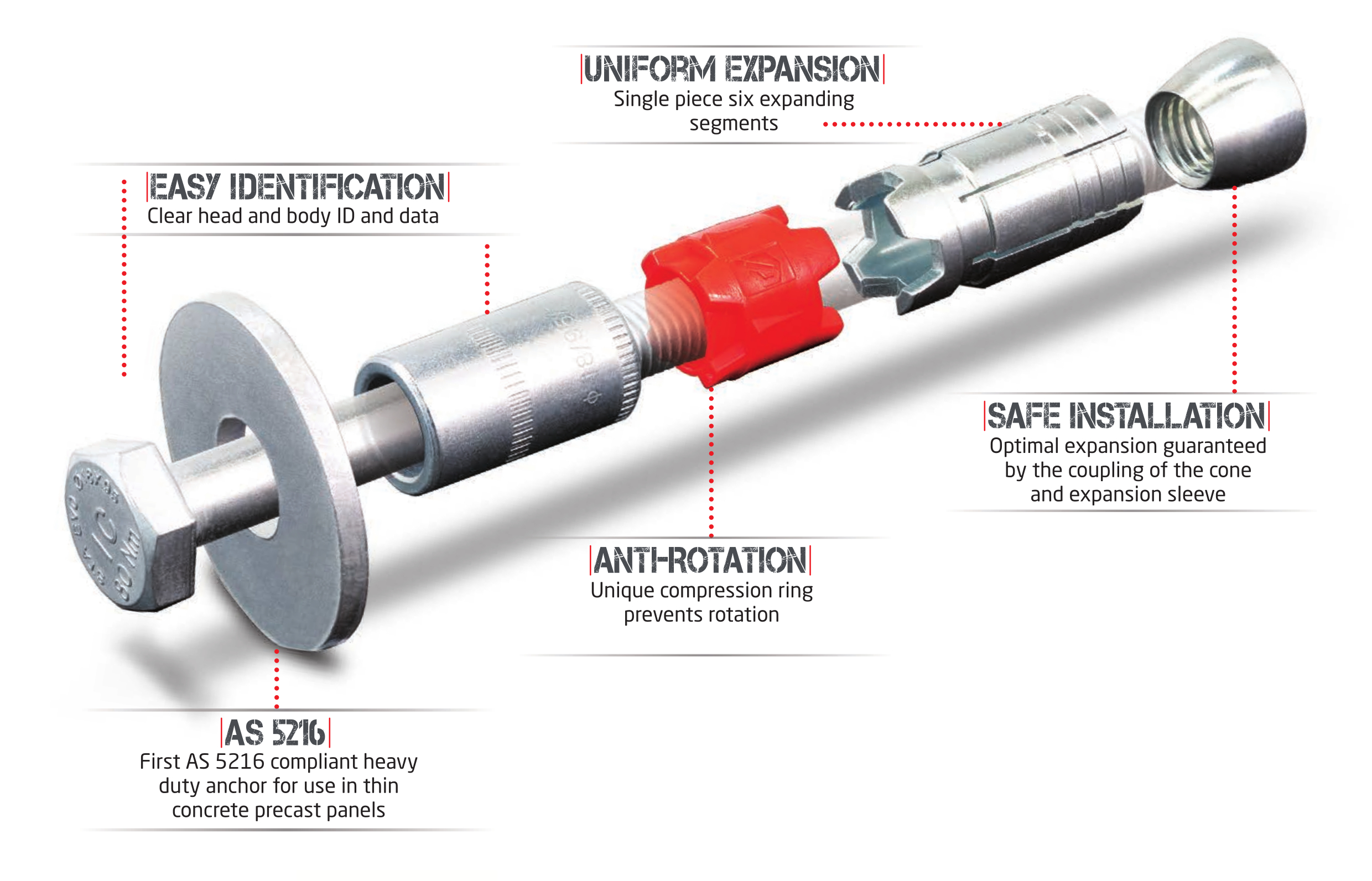

  • Unique engineered nylon compression ring prevents rotation and provides positive fixture clamping effect
  • Optimal expansion cone geometry offering ultimate performance

Applications:

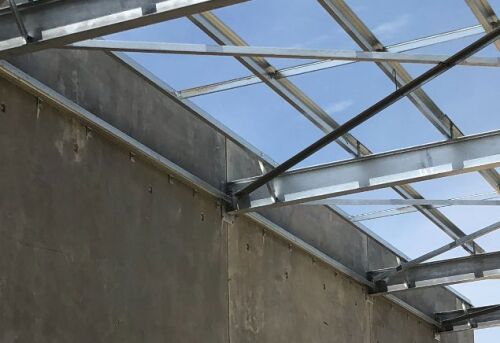

  • Raking angles for roof structures

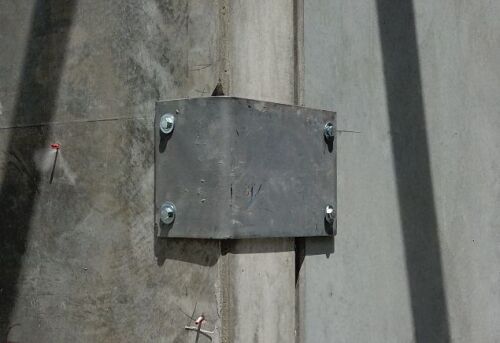

  • Precast panel steel plate connectors
  • Roof beams
  • Steel cleats
  • Structural connections


Engineered for safety in thin precast concrete panels and slabs, the ICCONS® STA-EVO Thin Panel Anchor represents a groundbreaking advancement in heavy-duty structural anchoring. The STA-EVO M12 sets a new standard for versatility and performance.

Download DesignPRO (fast and free) to design with ICCONS® STA-EVO and other compliant anchoring solutions in accordance with the latest Australian Fastening Standard AS 5216:2021.

If you would like to arrange a meeting with ICCONS® to discuss the STA-EVO Thin Panel Anchor or ICCONS® other Complaint Anchoring Solutions, please contact your local branch here.
