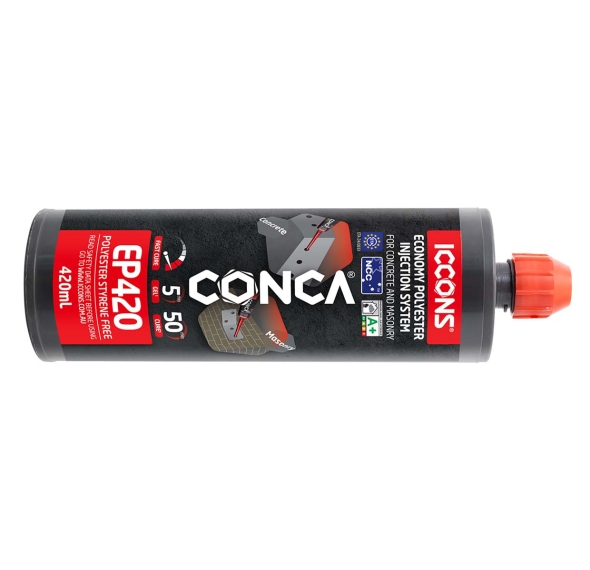

CONCA Economy Polyester Injection System

Product Summary

The CONCA EP Injection System is a general purpose, two-component bonded anchoring system, ideal for a wide range of construction applications. Formulated with a styrene-free polyester base, the system offers minimal odour, making it well-suited for indoor environments. The CONCA EP system is engineered for low to medium load applications, providing reliable anchorage in both concrete and masonry materials.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List

Back

Download Tech Specs

Product List
Features & Applications
Downloads

Specifications

Part No

Description

Load Perf

Working Time*

Curing Time*

Overhead

Masonry / Brickwork

Rebar

Threaded Stud

Quantity

UoM

Price

EP300

CONCA ECONOMY POLYESTER 300ML INJECTION SYSTEM

MEDIUM

6 MINS

85 MINS

YES

each

EP420

CONCA ECONOMY POLYESTER 420ML INJECTION SYSTEM

MEDIUM

6 MINS

85 MINS

YES

each

Features & Applications

Features
• ETA Assessed for Uncracked Concrete: European Technical Assessment (ETA 24/0833)
• Versatile Load Range: Designed for static and quasi-static general-purpose applications, anchor sizes - M8 to M24
• Rapid Curing: Features a fast-setting formula for quicker installation and reduced downtime
• Styrene-Free Formula: Safe for indoor use, with very low odour and a styrene-free formulation (SF)
• Broad Base Material Compatibility: Suitable for anchoring in a variety of base materials, including both concrete and masonry
• Edge and Spacing Flexibility: Allows close-to-edge anchoring and reduced anchor spacing, maximizing the efficiency of the installation
• Overhead Installation: Can be safely used in overhead applications, offering installation flexibility
• Wet, Dry, or Flooded Holes: Performs reliably in dry, wet, or even flooded holes, ensuring consistent anchoring in diverse conditions
• Temperature range: -40ºC to +80ºC (long term maximum temperature +50ºC)
