Painted - Aluminium / Steel - Multigrip Head Rivets

Painted - Aluminium / Steel - Multigrip Head Rivets

Product Summary

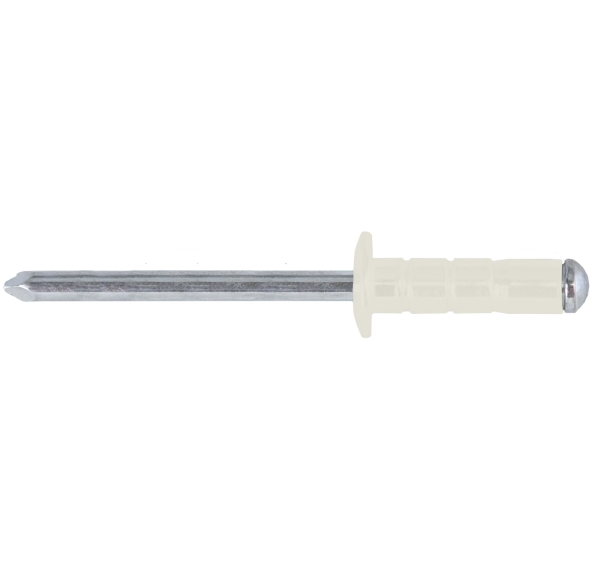

Consisting of high quality, low carbon content, zinc plated steel mandrel and 5052 grade aluminium alloy body, multigrip head rivets are designed to have an extended (wider) grip range. Up to 3 sizes of rivet can be substituted by 1 Multi-grip rivet allowing users to carry a smaller range of inventory. Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5). The entire Scell-it rivet range is ideal for applications in manufacturing, maintenance, assembly, repair and DIY projects.

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 51 variations
Show Related Products
Back
  • Product List
  • Features & Applications
  • Downloads

Specifications

Part No
Description
Finish
Drill Diameter
Body Diameter
Body Length
Grip Range
Shear (N)
Tensile (N)
Quantity
UoM
Price
RD-ASMG41.3BA
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 BASALT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3BG
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 BLUEGUM
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3CC
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 CLASSIC CREAM
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3CG
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 COTTAGE GREEN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3CO
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 COVE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3DO
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 DEEP OCEAN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3DU
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 DUNE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3DW
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 DOVER WHITE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3EH
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 EVENING HAZE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3GU
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 GULLY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3IS
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 IRONSTONE
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3JA
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 JASPER
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3MO
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 MONUMENT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3MR
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 MANOR RED
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3NS
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 NIGHT SKY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3PA
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 PAPERBARK
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3PE
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 PALE EUCALYPT
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3SG
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 SHALE GREY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3SM
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 SURF MIST
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3SO
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 SOUTHERLY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3TE
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 TERRAIN
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3WA
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 WALLABY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3WG
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 WOODLAND GREY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3WI
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 WILDERNESS
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG41.3WS
RIVET DOME MULTIGRIP ALU-STEEL 4-1/3 WINDSPRAY
ALUMINIUM / STEEL
3.3MM (#30)
3.2MM (1/8)
8.4
0.8 - 4.8
600
900
1000
RD-ASMG51.4BA
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 BASALT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4BG
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 BLUEGUM
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4CC
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 CLASSIC CREAM
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4CG
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 COTTAGE GREEN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4CO
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 COVE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4DO
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 DEEP OCEAN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4DU
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 DUNE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4DW
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 DOVER WHITE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4EH
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 EVENING HAZE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4GU
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 GULLY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4IS
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 IRONSTONE
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4JA
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 JASPER
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4MO
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 MONUMENT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4MR
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 MANOR RED
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4NS
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 NIGHT SKY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4PA
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 PAPERBARK
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4PE
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 PALE EUCALYPT
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4SG
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 SHALE GREY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4SM
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 SURFMIST
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4SO
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 SOUTHERLY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4TE
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 TERRAIN
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4WA
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 WALLABY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4WG
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 WOODLAND GREY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4WI
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 WILDERNESS
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG51.4WS
RIVET DOME MULTIGRIP ALU-STEEL 5-1/4 WINDSPRAY
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
9.9
1.2 - 6.4
950
1500
1000
RD-ASMG55.6SM
RIVET DOME MULTIGRIP ALU-STEEL 5-5/6 SURFMIST
ALUMINIUM / STEEL
4.1MM (#20)
4.0MM (5/32)
13.1
4.0 - 9.5
950
1500
1000

Features & Applications

Features
• 5052 grade aluminium alloy body and low carbon content, zinc plated steel mandrel
• The Multi-grip rivet covers a wider grip range than a standard shell rivet. Up to 3 sizes of rivet can be substituted by 1 Multi-grip rivet = smaller necessary range of inventory
• Suitable for both the Professional Blind Rivet Tool (hand held: RTP-55) as well as the Scell-It 18V Cordless Blind Rivet Tool (power tool: RT-18VE5)

Applications
• Perfect for application where various grip ranges is required
• Applications in manufacturing, maintenance, assembly, repair and DIY projects
