Painted - Design-Stars with Sealing Washer - Low Profile Cladding Screw To Metal Or Timber

Painted - Design-Stars with Sealing Washer - Low Profile Cladding Screw To Metal Or Timber

Product Summary

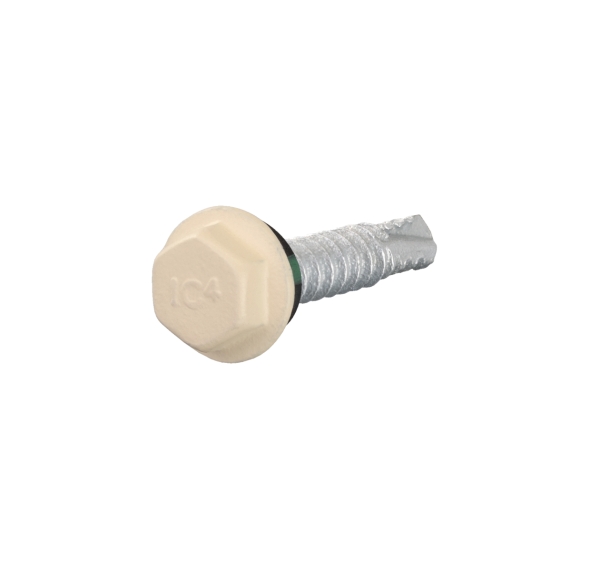

Design-Stars self-drilling low profile hex head screw are ideal for various cladding applications where an aesthetic, low-profile appearance is required. Designed for flat, or valley fixing various light-gauge steel profiles to steel or timber. Equipped with a galvanised class 4 coating making them perfect for internal and external applications. ICCONS Design-Stars self-drilling low profile hex head screw has a hardened steel universal drill point (timber or steel substrates), and coarse thread enabling the screw to drill and tap its own thread, without the need to pre-drill (please see screw self drilling capacities).

Dealer Login

Exclusively for ICONX Account Holders. Apply Today.

Find a dealer

Browse the ICCONS Dealer Network to find one near you.

See Product List Available in 29 variations
Back
  • Product List
  • Features & Applications

Specifications

Part No / Finish
Description
Head Type
Thread Length
Material Thickness
Quantity
UoM
Price

Gal
188W-BA
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 BASALT
HEX 5/16
FULL
0.75 - 3.00
1000
188W-BG
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 BLUEGUM
HEX 5/16
FULL
0.75 - 3.00
1000
188W-CC
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 CLASSIC CREAM
HEX 5/16
FULL
0.75 - 3.00
1000
188W-CG
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 COTTAGE GREEN
HEX 5/16
FULL
0.75 - 3.00
1000
188W-CO
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 COVE
HEX 5/16
FULL
0.75 - 3.00
1000
188W-DM
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DOMAIN
HEX 5/16
FULL
0.75 - 3.00
1000
188W-DO
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DEEP OCEAN
HEX 5/16
FULL
0.75 - 3.00
1000
188W-DU
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DUNE
HEX 5/16
FULL
0.75 - 3.00
1000
188W-DW
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 DOVER WHITE
HEX 5/16
FULL
0.75 - 3.00
1000
188W-EH
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 EVENING HAZE
HEX 5/16
FULL
0.75 - 3.00
1000
188W-GU
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 GULLY
HEX 5/16
FULL
0.75 - 3.00
1000
188W-IS
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 IRONSTONE
HEX 5/16
FULL
0.75 - 3.00
1000
188W-JA
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 JASPER
HEX 5/16
FULL
0.75 - 3.00
1000
188W-LO
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 LOFT
HEX 5/16
FULL
0.75 - 3.00
1000
188W-MA
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 MANGROVE
HEX 5/16
FULL
0.75 - 3.00
1000
188W-MO
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 MONUMENT
HEX 5/16
FULL
0.75 - 3.00
1000
188W-MR
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 MANOR RED
HEX 5/16
FULL
0.75 - 3.00
1000
188W-NS
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 NIGHT SKY
HEX 5/16
FULL
0.75 - 3.00
1000
188W-PA
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 PAPERBARK
HEX 5/16
FULL
0.75 - 3.00
1000
188W-PE
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 PALE EUCALYPT
HEX 5/16
FULL
0.75 - 3.00
1000
188W-SA
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SANDBANK
HEX 5/16
FULL
0.75 - 3.00
1000
188W-SG
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SHALE GREY
HEX 5/16
FULL
0.75 - 3.00
1000
188W-SM
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SURF MIST
HEX 5/16
FULL
0.75 - 3.00
1000
188W-SO
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 SOUTHERLY
HEX 5/16
FULL
0.75 - 3.00
1000
188W-TE
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 TERRAIN
HEX 5/16
FULL
0.75 - 3.00
1000
188W-WA
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WALLABY
HEX 5/16
FULL
0.75 - 3.00
1000
188W-WG
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WOODLAND GREY
HEX 5/16
FULL
0.75 - 3.00
1000
188W-WI
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WILDERNESS
HEX 5/16
FULL
0.75 - 3.00
1000
188W-WS
SD HEX LOW PROFILE COARSE WASHERED C4 10-16 X 25 WINDSPRAY
HEX 5/16
FULL
0.75 - 3.00
1000

Features & Applications

Features
• EPDM sealing washer
• Fast and easy installation
• Coarse thread for fast install
• Available in class 4 galvanisation, perfect for internal or external applications
• High pull-out loads
• No pre-drilling (please see material thickness for drilling capacities)

Applications
• Ideal for fastening steel brackets, metal components, steel sections and assemblies where a rubber seal is required
• Perfect for countless applications in the steel construction field
