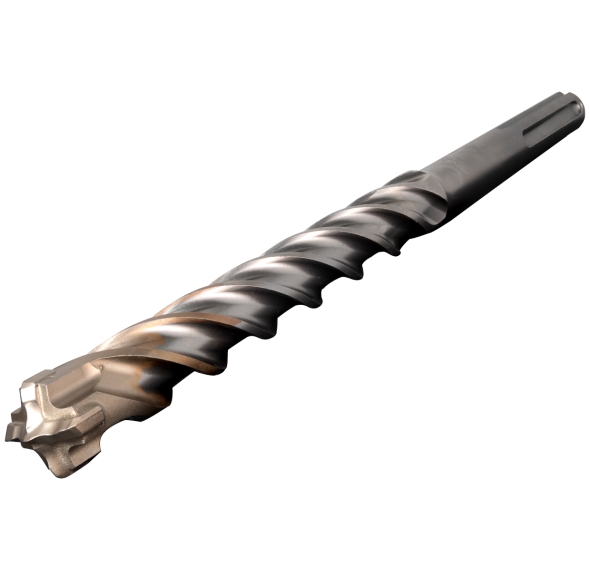

Setting new standards for robustness, the Raptor® 4 Cutter (SDS Max) delivers exceptional performance. Its patented 4 Cutter carbide drill tip ensures an extended service life, particularly in reinforced concrete, while the uniquely designed carbide 4 Cutter ensures swift, precise and efficient drilling that outperforms the competition.
Featuring a massive centring tip to facilitate straight forward spot drilling with pinpoint accuracy, a robust carbide tip (one-piece up to 28mm, three-piece 30mm and above) to penetrate rebar with constant precision, 4x4 Design to maximise the cutting zone, wear markers to determine the drill bit's ongoing suitability, radially shaped edges to reduce jamming, optimised dust removal from the short flute corridor and high grade steel, the Raptor® 4 Cutter (SDS Max) is ultimate drill bit for challenging materials.
RAPTOR ULTIMATE 12.0 X 340 4-CUTTER SDS-MAX DRILL BIT
12
200
340
each
Log In
R4MAX12.0-540
RAPTOR ULTIMATE 12.0 X 540 4-CUTTER SDS-MAX DRILL BIT
12
400
540
each
Log In
R4MAX14.0-340
RAPTOR ULTIMATE 14.0 X 340 4-CUTTER SDS-MAX DRILL BIT
14
200
340
each
Log In
R4MAX14.0-540
RAPTOR ULTIMATE 14.0 X 540 4-CUTTER SDS-MAX DRILL BIT
14
400
540
each
Log In
R4MAX16.0-340
RAPTOR ULTIMATE 16.0 X 340 4-CUTTER SDS-MAX DRILL BIT
16
200
340
each
Log In
R4MAX16.0-540
RAPTOR ULTIMATE 16.0 X 540 4-CUTTER SDS-MAX DRILL BIT
16
400
540
each
Log In
R4MAX16.0-940
RAPTOR ULTIMATE 16.0 X 940 4-CUTTER SDS-MAX DRILL BIT
16
800
940
each
Log In
R4MAX18.0-340
RAPTOR ULTIMATE 18.0 X 340 4-CUTTER SDS-MAX DRILL BIT
18
200
340
each
Log In
R4MAX18.0-540
RAPTOR ULTIMATE 18.0 X 540 4-CUTTER SDS-MAX DRILL BIT
18
400
540
each
Log In
R4MAX20.0-320
RAPTOR ULTIMATE 20.0 X 320 4-CUTTER SDS-MAX DRILL BIT
20
200
320
each
Log In
R4MAX20.0-520
RAPTOR ULTIMATE 20.0 X 520 4-CUTTER SDS-MAX DRILL BIT
20
400
520
each
Log In
R4MAX20.0-720
RAPTOR ULTIMATE 20.0 X 720 4-CUTTER SDS-MAX DRILL BIT
20
600
720
each
Log In
R4MAX20.0-920
RAPTOR ULTIMATE 20.0 X 920 4-CUTTER SDS-MAX DRILL BIT
20
800
920
each
Log In
R4MAX22.0-1320
RAPTOR ULTIMATE 22.0 x 1320 4-CUTTER SDS-MAX DRILL BIT
each
Log In
R4MAX22.0-320
RAPTOR ULTIMATE 22.0 X 320 4-CUTTER SDS-MAX DRILL BIT
22
200
320
each
Log In
R4MAX22.0-520
RAPTOR ULTIMATE 22.0 X 520 4-CUTTER SDS-MAX DRILL BIT
22
400
520
each
Log In
R4MAX22.0-720
RAPTOR ULTIMATE 22.0 x 720 4-CUTTER SDS-MAX DRILL BIT
each
Log In
R4MAX24.0-320
RAPTOR ULTIMATE 24.0 X 320 4-CUTTER SDS-MAX DRILL BIT
24
200
320
each
Log In
R4MAX24.0-520
RAPTOR ULTIMATE 24.0 X 520 4-CUTTER SDS-MAX DRILL BIT
24
400
520
each
Log In
R4MAX25.0-1320
RAPTOR ULTIMATE 25.0 X 1320 4-CUTTER SDS-MAX DRILL BIT
25
1200
1320
each
Log In
R4MAX25.0-520
RAPTOR ULTIMATE 25.0 X 520 4-CUTTER SDS-MAX DRILL BIT
25
400
520
each
Log In
R4MAX25.0-920
RAPTOR ULTIMATE 25.0 X 920 4-CUTTER SDS-MAX DRILL BIT
25
800
920
each
Log In
R4MAX26.0-320
RAPTOR ULTIMATE 26.0 X 320 4-CUTTER SDS-MAX DRILL BIT
26
200
320
each
Log In
R4MAX26.0-520
RAPTOR ULTIMATE 26.0 X 520 4-CUTTER SDS-MAX DRILL BIT
26
400
520
each
Log In
R4MAX28.0-370
RAPTOR ULTIMATE 28.0 X 370 4-CUTTER SDS-MAX DRILL BIT
28
250
370
each
Log In
R4MAX28.0-570
RAPTOR ULTIMATE 28.0 X 570 4-CUTTER SDS-MAX DRILL BIT
28
450
570
each
Log In
R4MAX28.0-920
RAPTOR ULTIMATE 28.0 x 920 4-CUTTER SDS-MAX DRILL BIT
each
Log In
R4MAX30.0-370
RAPTOR ULTIMATE 30.0 X 370 4-CUTTER SDS-MAX DRILL BIT
30
250
370
each
Log In
R4MAX30.0-570
RAPTOR ULTIMATE 30.0 X 570 4-CUTTER SDS-MAX DRILL BIT
30
450
570
each
Log In
R4MAX32.0-1320
RAPTOR ULTIMATE 32.0 x 1320 4-CUTTER SDS-MAX DRILL BIT
each
Log In
R4MAX32.0-370
RAPTOR ULTIMATE 32.0 X 370 4-CUTTER SDS-MAX DRILL BIT
32
250
370
each
Log In
R4MAX32.0-570
RAPTOR ULTIMATE 32.0 X 570 4-CUTTER SDS-MAX DRILL BIT
32
450
570
each
Log In
R4MAX32.0-720
RAPTOR ULTIMATE 32.0 X 720 4-CUTTER SDS-MAX DRILL BIT
32
600
720
each
Log In
R4MAX35.0-1320
RAPTOR ULTIMATE 35.0 x 1320 4-CUTTER SDS-MAX DRILL BIT
each
Log In
R4MAX35.0-370
RAPTOR ULTIMATE 35.0 X 370 4-CUTTER SDS-MAX DRILL BIT
35
250
370
each
Log In
R4MAX35.0-570
RAPTOR ULTIMATE 35.0 X 570 4-CUTTER SDS-MAX DRILL BIT
35
450
570
each
Log In
R4MAX38.0-570
RAPTOR ULTIMATE 38.0 X 570 4-CUTTER SDS-MAX DRILL BIT
38
450
570
each
Log In
R4MAX40.0-1320
RAPTOR ULTIMATE 40.0 X 1320 4-CUTTER SDS-MAX DRILL BIT
40
1200
1320
each
Log In
R4MAX40.0-370
RAPTOR ULTIMATE 40.0 X 370 4-CUTTER SDS-MAX DRILL BIT
40
250
370
each
Log In
R4MAX40.0-570
RAPTOR ULTIMATE 40.0 X 570 4-CUTTER SDS-MAX DRILL BIT
40
450
570
each
Log In
R4MAX40.0-920
RAPTOR ULTIMATE 40.0 X 920 4-CUTTER SDS-MAX DRILL BIT
40
800
920
each
Log In
R4MAX45.0-570
RAPTOR ULTIMATE 45.0 X 570 4-CUTTER SDS-MAX DRILL BIT
45
450
570
each
Log In
R4MAX50.0-570
RAPTOR ULTIMATE 50.0 X 570 4-CUTTER SDS-MAX DRILL BIT
50
450
570
each
Log In
Features & Applications
Features
• Massive Centring Tip for precision
• Robust Carbide Tip (one-piece up to 28mm, three-piece 30mm and above)
• 4x4 Design to maximise the cutting zone
• Wear Markers to determine ongoing drill bit performance
• Reduced Jamming from radially shapped edges
• Optimised Dust Removal from the short flute corridor
• High-Grade Steel with high nickel content
